i need some help….pictures….
I’m on version #5 of aluminum breach design and with the temps now below 0 I brought the latest hybrid hammers into work to finish them off at the end of the day but I forgot my drawings at the house….what I need to know is how far back from the face of the breach is the hole for the cocking knob?? I know their is a drawing of it somewhere here in tag but I can’t find it now that I need it…pictures will be up when I get these done…Greg
well with everything that has been going on i finaly got these beauties done…they have an aluminum core w/ a plastic sleve to help them ride smoothly…I’ve made three of them and One i plan on keeping, one is goind to R.C. and one might be going to graffdesign if he decides he still wants it.. 🙄 (these have taken me a bit to get to work the way i them wanted too)…Greg
All Replies
Viewing 6 replies - 1 through 6 (of 6 total)
new pictures…
No probs 😉
your thanks giving tomorow i understand,hope you all have a good few days off.
Tatsumi thank you…11mm-.433 sounds bout rite..12hr days have more than taken their toll on my brain over the last months…this 4 day weekend is much needed..Greg

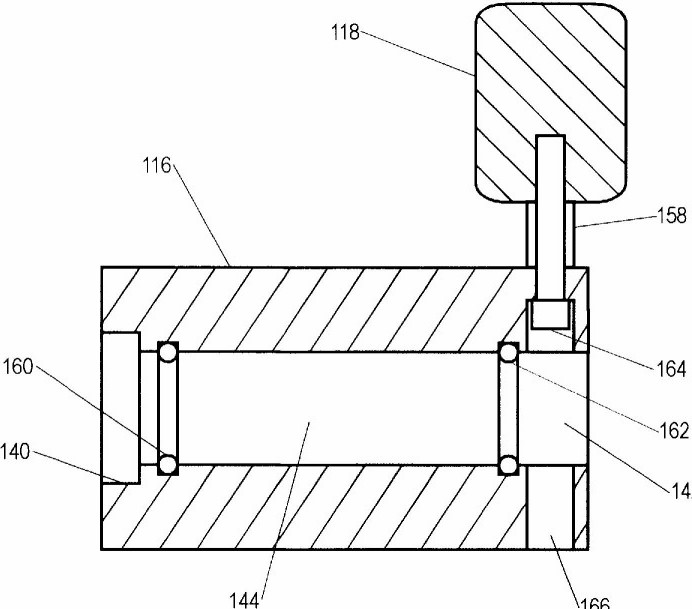

Can’t find a print with dimensions? Found this Drawing : link
http://www.stealthresource.org/Patent%20Files/Breech%20slide.jpg
That drawing must be out dated, my bolt handle was a thimble with a screw through it into breech. Just a threaded hole into the breech? Thimble had a plastic cover over it.
Sam
might be a bit late now but on mine UK stealth standard breach its bang on 11mm or 1/2 inch in your money from face to center of hole.
searched for the past post but could not find it, hope it goes well.
